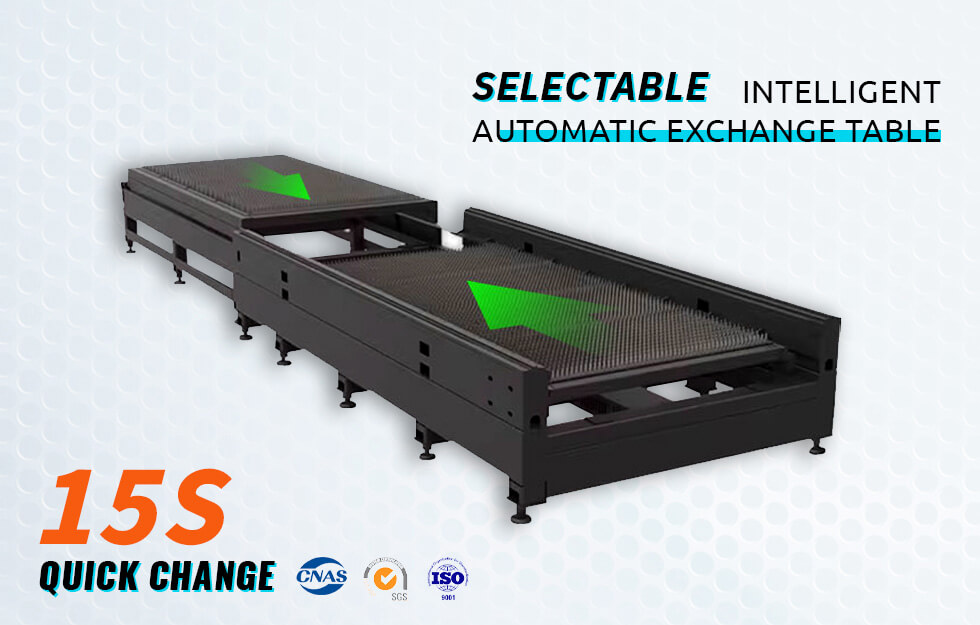

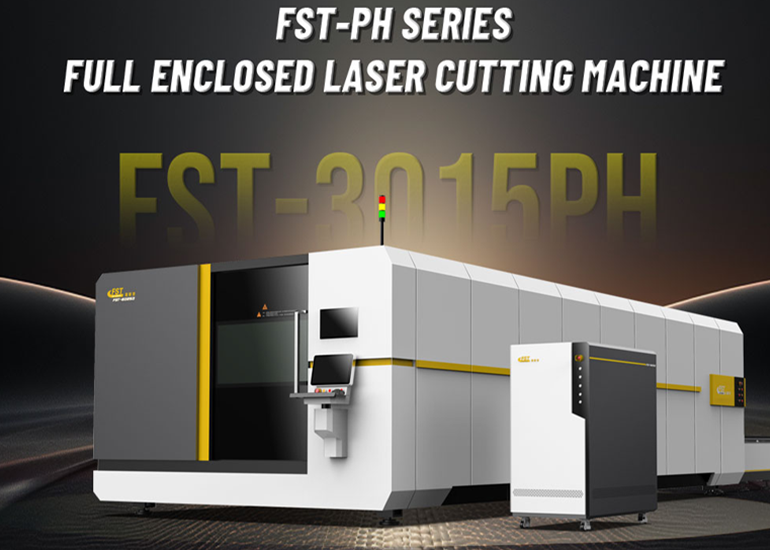

is a fully enclosed metal sheet fiber laser cutting machine with exchange platform. Equipped with fiber laser source of power from 1.5kw to 30kw, it is able to cut up to 25mm metal sheet.And the working area is from 3000mm*1500mm to 6000mm×2500mm. The fully-protected closed design ensures the safety of processing.It has the advantages of fast cutting speed, good cutting effect,low operating cost, and good stable processing ability. This cnc laser cutter is equipped with an international main stream transmission drive system, new generation of welding machine bed and aluminum beams, new designed air circuit control module,new optimized control system and etc., The laser cutting machine is equipped with a new advanced fiber laser and laser cutting head,with superior comprehensive performance.
UPGRADED MECHANICAL STRUCTURE
Ultra light aluminum crossbeam, produced using 10000 ton extrusion technology to create aluminum cross beams; Fire resistant, high temperature resistant, and excellent operational stability.
HIGH-PRECISION TRANSMISSION SYSTEM
The machine adopts a servo double-drive gantry structure, rack guide rail transmission, and the machine tool transmission system parts are imported brands to ensure the equipment's long-term high-speed cutting accuracy.
SAFETY AND NO POLLUTION

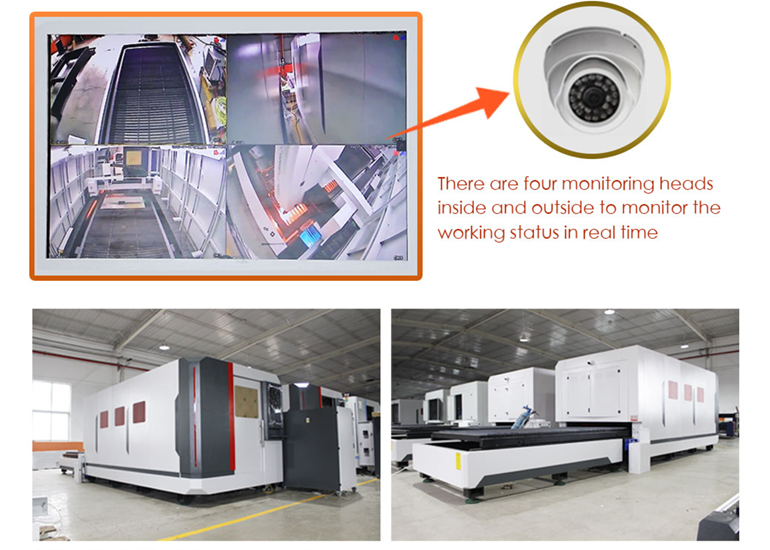

Fully enclosed structure with special laser protection visual window, the smoke generated by cutting can be quickly eliminated, environmentally friendly and pollution-free.
CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD. Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.
1. Auto Optimize Imported Drawing
2. Graphical Cutting Technique Setting
3. Flexible Production Mode
4. Statistic of Production
5. Precise Edge Finding
6. Dual-Drive Error Offset
Servo motors stabilise and drive the beam to control the movement of the XYZ axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.
Dual rail and rac, world famous imported brand, precision linear guides and imported gear racks
The large-enclosed optical fiber cutting machine adopts a fully automatic feeding system, with a fully-enclosed safety design,Allowing the entire equipment to achieve stable cutting under high-power and high-speed operation, endowing the equipment with a higher standard product positioning.

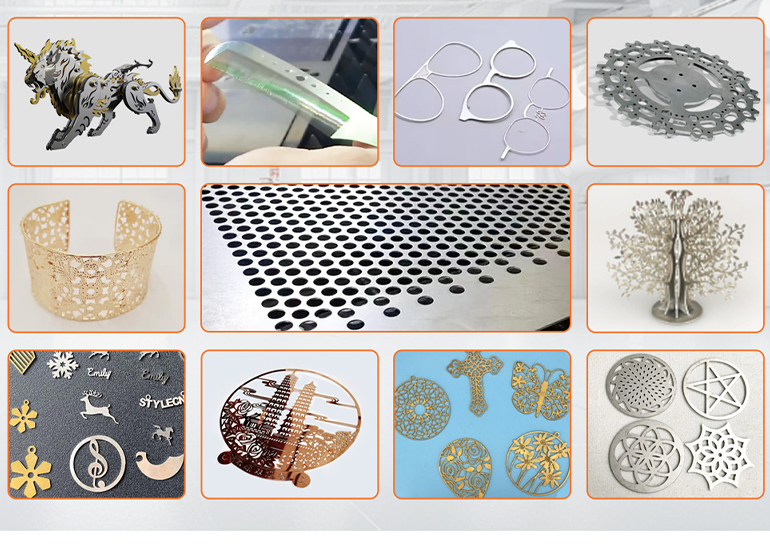

Application Materials:This machine is optimized for high-precision cutting on all types of metals, including: Gold, Sliver, Stainless Steel & Carbon Steel, Aluminum and Aluminum Alloys, Titanium & Titanium Alloys, Galvanized & Zinc-coated Steel, Copper and Brass
Application Industries:This precision laser metal cutting machine is specially designed for industries that demand fine detail and high accuracy. It's ideal for:
Optics & Eyewear: Accurate cutting of delicate metal components used in eyewear frames.Electronics & Microelectronics: Suitable for small, intricate parts required in microelectronics and semiconductor production.Appliances & Hardware: Ideal for decorative and functional small metal components.Jewelry & Accessories: Perfect for creating detailed jewelry designs, logos, metal letters, and other small personalized items.Precision Machinery: Ideal for intricate, small parts needed in fine mechanical and industrial applications.DIY & Small Workshops: Compact size makes it a top choice for small factories, workshops, and home-based businesses.
| Model | FST-3015PH(1560/2060/2560) |
| Laser Power | 1500W/2000W/3000W/6000W/12000W/15000W/20000W etc. |
| Working Area | 1500*3000/1500*6000/2000*6000/2500*6000(mm) |
| Cooling Method | Water cooling protection |
| Positioning Accuracy | ±0.01mm |
| Maximum Acceleration | 1G-2G |
| Lsaer Source | Raycus/MAX/IPG/RECI |
| Working Voltage | 220V/380V |
