✨✨✨Advancing Industrial Surface Treatment with Air-Cooled Pulsed Laser Cleaning Technology
As modern manufacturing continues to move toward greener, more precise, and intelligent production methods, laser cleaning technology is rapidly replacing traditional cleaning processes such as chemical treatment, sandblasting, and mechanical grinding. With its environmentally friendly operation, high precision, and outstanding efficiency, laser cleaning has become an essential solution for industrial surface preparation and restoration.

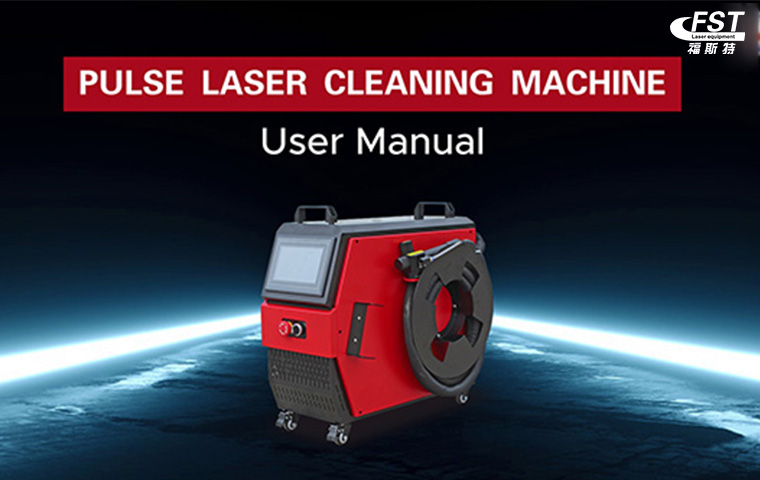

The Foster Laser Air-Cooled Pulsed Laser Cleaning Machine utilizes advanced pulsed laser technology to deliver high-energy laser pulses onto the material surface, effectively removing rust, oxide layers, oil contamination, paint coatings, and other unwanted residues while preserving the integrity of the base material. Featuring an air-cooled design, user-friendly operation, and low maintenance requirements, this system is widely used in metal fabrication, steel structure manufacturing, automotive maintenance, mold cleaning, and building restoration applications.
✅Key Features
The Foster Laser Air-Cooled Pulsed Laser Cleaning Machine combines high performance with operational convenience, offering several advantages:
• Air-cooled cooling system with no external water chiller required
• Stable laser output for consistent cleaning performance
• Non-contact processing that minimizes substrate damage
• No chemicals, abrasives, or consumables required
• Adjustable process parameters for various materials and applications
• Compact structure with excellent mobility and ease of operation
• Environmentally friendly and energy-efficient cleaning process
📌Pre-Operation Inspection
Before starting the machine, the following checks should be completed to ensure safe and stable operation.
📌Power Supply Verification
Confirm that the machine is properly connected to a stable power source that meets the equipment's electrical requirements.
📌Air Supply Connection
Connect the air hose securely to the compressed air source and adjust the auxiliary gas pressure according to the cleaning application.
A working pressure of approximately 0.4 MPa is generally recommended, although the optimal setting may vary depending on the material type and cleaning requirements.
📌Safety Inspection
Before operation, ensure that:
• Appropriate laser safety goggles are worn
• The work area is well ventilated
• No flammable or explosive materials are present nearby
• The laser head and optical lenses are clean and in good condition
Machine Startup Procedure
After completing the necessary inspections, follow these steps to start the machine:
1. Switch on the main power supply.
2. Release the emergency stop button.
3. Allow the system to complete its self-diagnostic startup sequence.
4. Activate the laser source and place the machine in standby mode.
5. Select the appropriate cleaning parameters based on the application.
The intelligent control interface allows operators to quickly configure settings and switch between cleaning modes with ease.
📌Cleaning Mode Selection
Different surface conditions require different cleaning parameters and operating modes.
Rust Removal
Suitable for:
• Carbon steel rust removal
• Steel structure refurbishment
• Weld seam cleaning
The laser effectively removes corrosion while maintaining the original metal surface.
Paint and Coating Removal
Ideal for:
• Paint stripping from metal surfaces
• Removal of building coatings
• Surface preparation before refurbishment
Compared with traditional grinding methods, laser cleaning equipment offers higher efficiency and reduced environmental impact.
Oxide Layer Removal
For stainless steel components, laser cleaning can efficiently eliminate weld discoloration and heat-affected oxide layers, restoring a clean and uniform surface finish.
🔔🔔Precision Surface Cleaning
Suitable for mold maintenance, precision component cleaning, and other applications requiring highly controlled, low-damage surface treatment.
Cleaning Operation Guidelines
Before beginning the cleaning process, verify that the laser focal position has been correctly adjusted.
The machine's red-light positioning system assists with focal alignment. When the red guide beams overlap into a single point, the optimal focal position has been achieved.
💎For best results during operation:
• Maintain the recommended distance between the cleaning head and the workpiece
• Move the cleaning gun at a consistent speed
• Avoid prolonged exposure to a single area
• Adjust laser power and scanning parameters according to the material characteristics
Proper operating techniques not only improve cleaning quality but also help extend equipment lifespan.
Application Industries
The Foster Laser Air-Cooled Pulsed Laser Cleaning Machine is widely used across multiple industries, including:
• Steel Structure Manufacturing
• Metal Fabrication
• Automotive Manufacturing and Repair
• Mold Cleaning and Maintenance
• Aerospace Component Maintenance
• Railway and Transportation Equipment Maintenance
• Building Restoration and Cultural Heritage Conservation
• Industrial Equipment Refurbishment
Whether for large-scale rust removal or high-precision surface treatment, the system delivers reliable and consistent cleaning performance.
Maintenance and Safety Recommendations
To ensure long-term operational stability, routine maintenance is recommended:
• Regularly inspect and clean optical lenses
• Check air supply connections and system pressure
• Keep the machine exterior clean and dust-free
• Apply proper dust protection during extended shutdown periods
• Follow all operating and maintenance procedures specified by the manufacturer
Operators should receive professional training and strictly comply with laser safety regulations at all times.
👏👏Conclusion
As an advanced surface treatment solution, air-cooled pulsed laser cleaning technology is becoming increasingly popular across a wide range of industries due to its efficiency, precision, environmental benefits, and low operating costs.
The Foster Laser Air-Cooled Pulsed Laser Cleaning Machine provides a versatile solution for rust removal, paint stripping, oxide layer cleaning, and industrial surface preparation. By helping manufacturers improve productivity, reduce operating expenses, and achieve sustainable production goals, it represents a modern and efficient approach to industrial cleaning applications
