✨✨✨The performance of a laser cutting system is closely linked to the quality and stability of its auxiliary gas supply. In high-precision cutting applications, improper gas selection, insufficient purity, or unstable pressure can directly affect cutting efficiency, edge quality, and equipment reliability.
For 3015 fiber laser cutting machines, establishing a standardized gas supply and pneumatic connection system is essential to achieving consistent cutting performance and long-term operational stability.
Auxiliary Gas Configuration for Different Materials
Oxygen Assistance for Carbon Steel Processing
Oxygen is primarily used for cutting carbon steel materials, especially medium and thick plates. During the cutting process, oxygen supports combustion and reacts with the metal surface to generate additional thermal energy, significantly improving piercing speed and cutting efficiency.
To ensure stable cutting results:
📣Recommended oxygen purity: 99.95% or above
📣Suggested working pressure: approximately 0.5 MPa
Low-purity oxygen may lead to:
✨Unstable cutting performance
✨Excessive oxidation on cutting edges
✨Increased slag adhesion
✨Reduced processing speed
✨Accelerated nozzle contamination
Maintaining a stable high-purity oxygen supply is therefore critical for efficient carbon steel processing.
Nitrogen Protection for Stainless and Non-Fer Metals
Nitrogen is widely used for cutting stainless steel, aluminum alloy, copper, and other non-ferrous metals. As an inert gas, nitrogen effectively isolates oxygen during the cutting process, helping preserve the natural metallic luster and improve edge smoothness.
Recommended conditions:
✅Nitrogen purity: 99.95% or higher
✅Recommended outlet pressure: above 1.6 MPa
Nitrogen cutting is especially suitable for applications requiring:
📌Bright cut surfaces
📌Minimal oxidation
📌High dimensional accuracy
📌Superior edge consistency
It is commonly applied in industries such as kitchenware manufacturing, precision sheet metal fabrication, electronics, and decorative stainless steel processing.
Compressed Air for Cost-Efficient Production
Compressed air provides an economical alternative for thin sheet cutting applications. It is commonly used for processing thin carbon steel and stainless steel where ultra-high edge quality is not mandatory.
🎉🎉🎉To maintain stable machine operation, the compressed air system must provide:
Clean airflow
Dry air without moisture
Oil-free gas supply
Stable pressure output
Air compressor systems should be equipped with:
📍Refrigerated air dryers
📍High-efficiency precision filters
📍Moisture and oil separation units
👏👏Proper air treatment significantly reduces the risk of:
Optical contamination
Lens damage
Cutting instability
Internal pneumatic system wear
Pneumatic Connection Recommendations
A properly installed gas supply system helps maintain consistent laser output and stable cutting quality.

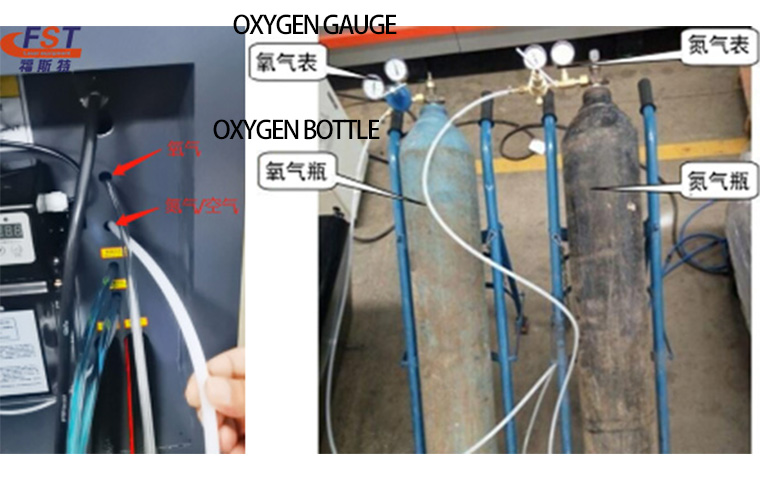

Oxygen Connection
The oxygen inlet located at the rear of the laser equipment should be connected directly to the oxygen cylinder regulator.
Before operation:
✨Confirm all pipelines are securely connected
✨Ensure stable pressure output
✨Check for any gas leakage
Stable oxygen delivery pressure is essential for thick carbon steel cutting and efficient piercing performance.
Nitrogen and Compressed Air Connection
The nitrogen/air interface can be connected to:
🎉A high-pressure nitrogen cylinder
🎉An industrial-grade air compressor system
For compressed air operation, a complete air treatment system is highly recommended to guarantee clean and stable airflow throughout continuous production.
System Maintenance and Safety Guidelines
Maintain Gas Cleanliness
❗❗❗Contaminated gas sources may result in:
Poor cutting surfaces
Blackened cutting edges
Excessive burr formation
Pollution of protective lenses and optical components
Regular inspection of gas quality and filtration systems is strongly recommended.

Inspect Pneumatic Lines Regularly
Before machine startup:
💎Verify pipelines are free from water, oil, and dust
💎Check all connectors and valves for airtight sealing
💎Inspect regulators and safety components periodically
Stable gas transmission is essential for maintaining consistent cutting performance.

Optimize Pressure According to Material Thickness
Different materials and thicknesses require different gas pressure settings.
Correct parameter optimization helps achieve:
🔔Better cutting edge quality
🔔Improved cutting speed
🔔Lower gas consumption
🔔Reduced thermal impact on materials
Improper pressure settings may compromise both processing efficiency and surface quality.

Follow Standard Safety Procedures
To ensure safe operation:
✨Gas cylinders must be secured in an upright position
✨Oxygen systems should be away from heat sources and flammable materials
✨Operators should wear protective gloves and safety glasses when handling high-pressure gas equipment
Routine inspection of valves, regulators, and pneumatic systems is recommended to maintain long-term operational safety.

Enhancing Cutting Performance Through Proper Gas Management
A stable and properly configured gas supply system is a key factor in maximizing the performance of 3015 fiber laser meta l cutting machines.
By selecting appropriate auxiliary gases, maintaining high gas purity, and following standardized pneumatic connection practices, users can achieve superior cutting quality, improved production efficiency, and extended equipment service life across a wide range of industrial applications.
