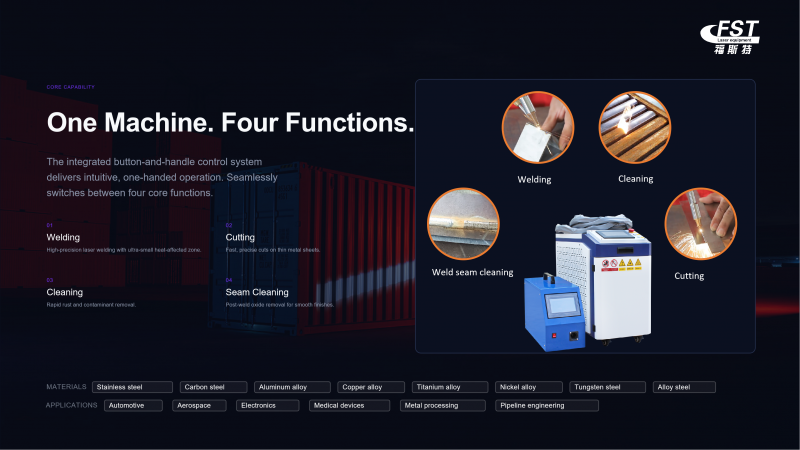

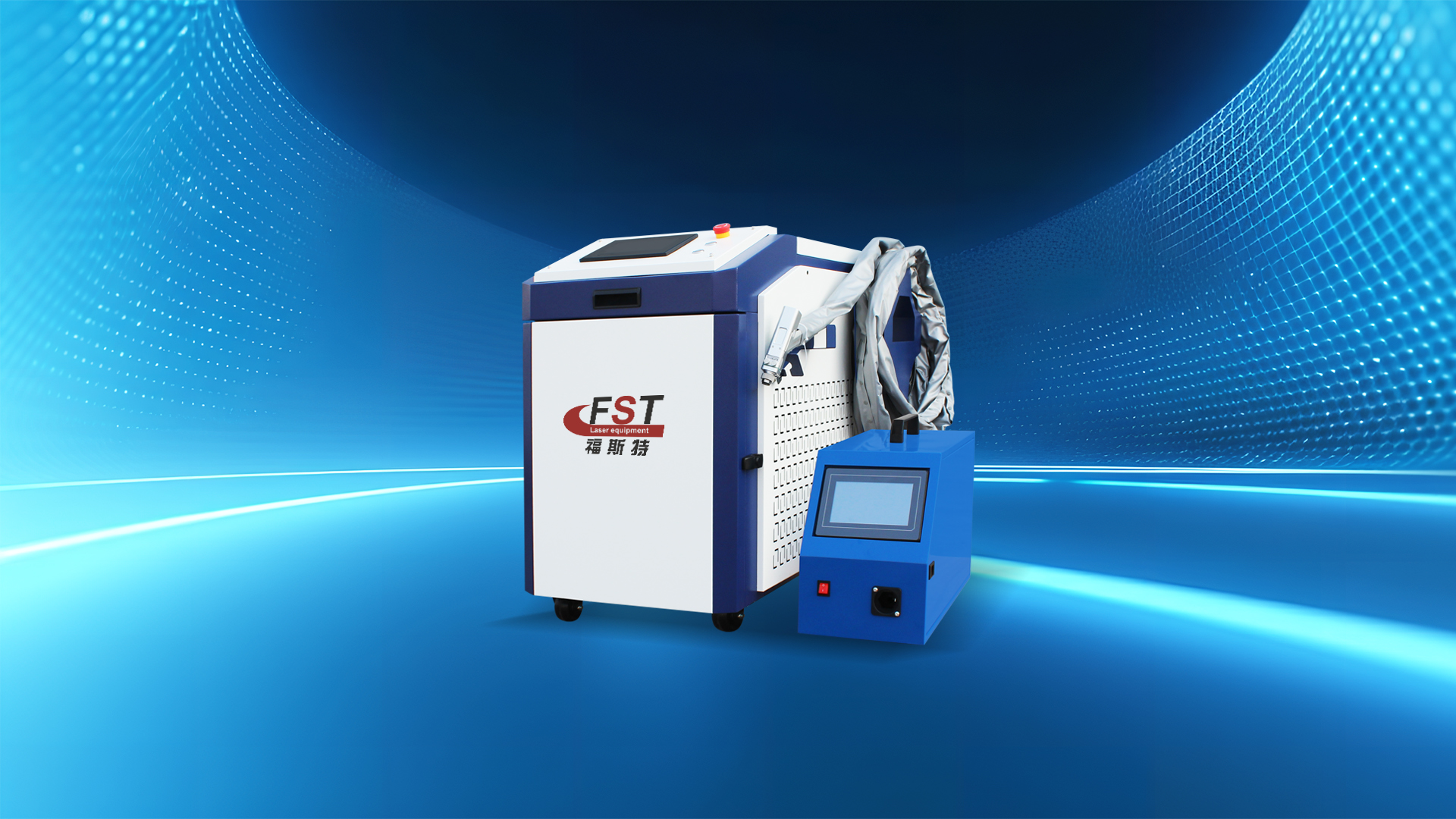

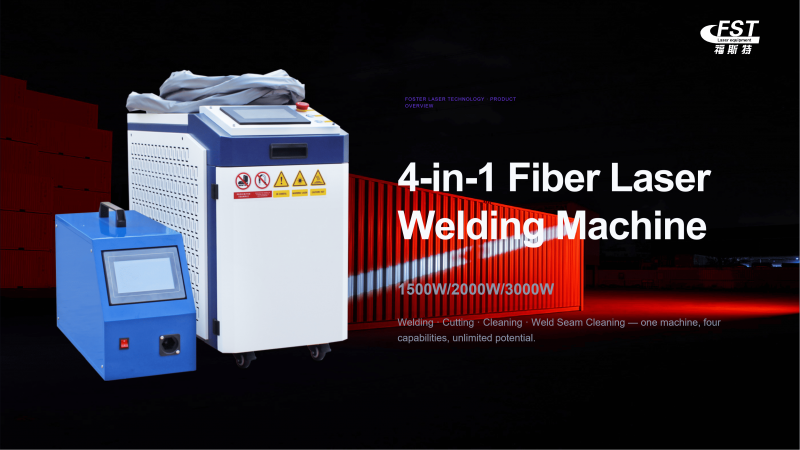

This is a highly cost-effective 4-in-1 laser welding machine. It supports a maximum laser power of 3KW and comes with an ultra-light welding torch weighing only 0.7 kg. Boasting an excellent welding speed, it can achieve a welding length of 7.2 meters per minute. A wire feeding device is available as an accessory.
Precision and thin-plate welding with high speed and yield
Easy to learn: novices master it in 5 minutes, saving labor costs
Almost no deformation — no sanding, fewer post-processing steps
Works with stainless steel, carbon steel, galvanized sheet, aluminum, copper and more

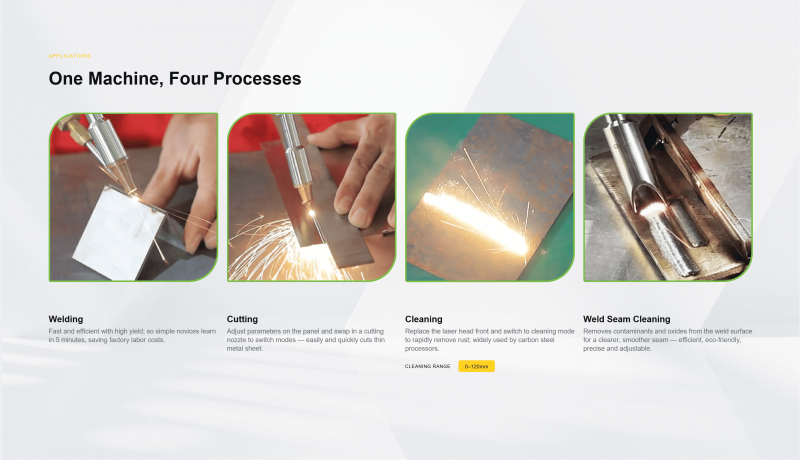

*Welding: Fast and efficient with high yield; so simple novices learn in 5 minutes, saving factory labor costs.
*Cutting: Adjust parameters on the panel and swap in a cutting nozzle to switch modes — easily and quickly cuts thin metal sheet.
*Cleaning: Replace the laser head front and switch to cleaning mode to rapidly remove rust; widely used by carbon steel processors.
*Welding Seam Cleaning: Removes contaminants and oxides from the weld surface for a clearer, smoother seam — efficient, eco-friendly, precise and adjustable.

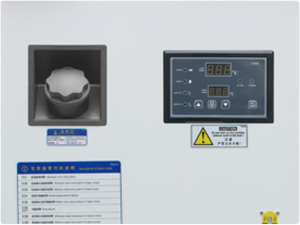

HanLi and S&A teyu brand can be selected. Protect the laser source and prolong the life of the laser source.

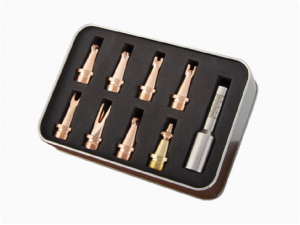

Different shapes of nozzles are suitable for different jobs. It needs to choose the right wire material when used with a wire feeder.

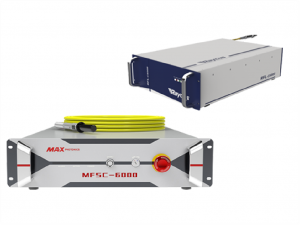

Famous brands such as Raycus, Max, IPG, JPT, etc. The most important part of laser welding machine. Working life is 100,000 hours.

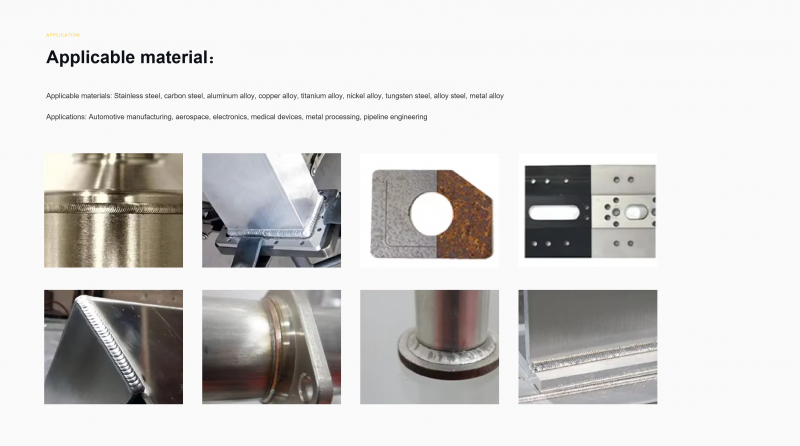

Applicable materials: Stainless steel, carbon steel, aluminum alloy, copper alloy, titanium alloy, nickel alloy, tungsten steel, alloy steel, metal alloy
Applications: Automotive manufacturing, aerospace, electronics, medical devices, metal processing, pipeline engineering
| Model | 3000w laser welding machine |
| Laser power | 3000W |
| Cooling method | Water Cooling |
| Laser wavelength (nm) | 1070 |
| Welding aiming preview method | Built-in Red-Light pointer |
| Other optional support functions | Cleaning+cutting+weld bead cleaning |
| Length of fiber-optical | 10m(standard) |
| Welding gun weight | 1.3KG |
| Welding shielding gas | Argon or nitrogen (air pressure approx. 6-8 bar) |
| Power supply requirement | 380V+10%,three phase |
